Description
Specification
| Model Parameters | |

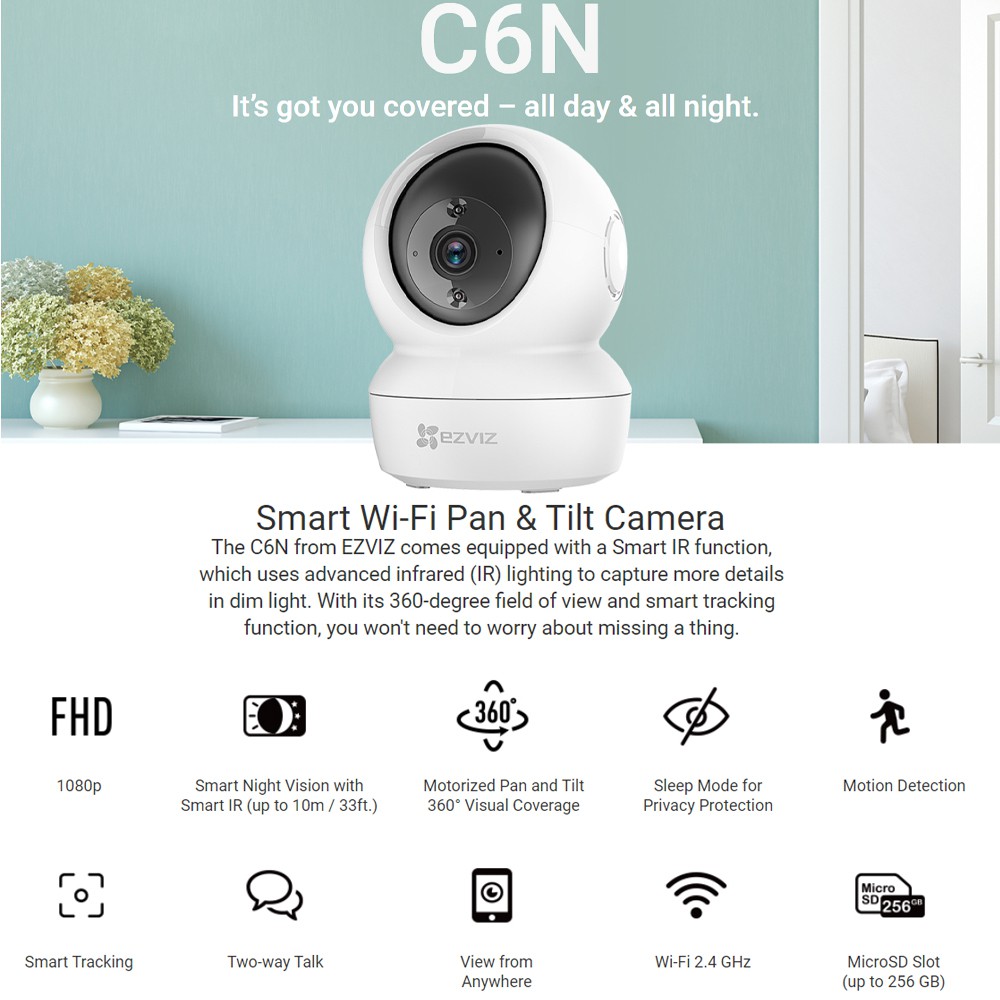

| Model | CS-C6N |
| Camera | |
| Image Sensor | 1/4″ Progressive Scan CMOS |
| Shutter Speed | Self-Adaptive Shutter |
| Lens | 4mm@ F2.4, View Angle : 85º Diagonal, 75º Horizontal, 45º Vertical |
| Lens Mount | M12 |
| Day & Night | IR-Cut Filter With Auto-Switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264 |
| Video Bit Rate | Adaptive Bit Rate |
| Image | |
| Max. Resolution | 1920 x 1080 |
| Frame Rate | Max. 15fps; Self-Adaptive During Network Transmission |
| Network | |
| Smart Alarm | Motion Detection |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface | |
| Storage | MicroSD Card Slot (Max. 256GB) |
| Power | Micro USB |
| Wired Network | RJ45 x 1 (10M/100M Self-Adaptive Ethernet Port) |
| Wi-Fi | |
| Standard | IEEE802.11b/g/n |
| Frequency Range | 2.4GHz ~ 2.4835GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-Bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b : 11Mbps, 11g : 54Mbps, 11n : 72Mbps |
| General | |
| Power Supply | DC 5V/1A |
| Power Consumption | 5W Max |
| IR Range | Max. 10m |
| Dimensions | 88mm x 88.2mm x 119mm (3.46” x 3.47” x 4.69”) |
| Packaging Dimensions | 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) |
| Bare Weight | 218g (0.48lb) |
| Packaging Contents | |
| Packaging Contents | C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide |
| Operating Environment | |
| Temperature | -10ºC To 45ºC (14ºF To 113ºF) |
| Humidity | 95% Or Less (Non-Condensing) |
| Certifications | |
| Certifications | FCC/UL/CE/WEEE/REACH/RoHS |
What In The Box
- 1 x EZVIZ C6N 2MP 1080P FHD Smart Wi-Fi Pan & Tilt CCTV Camera CS-C6N-R101-1G2WF
- 1 x Base
- 1 x Power Cable 3m (9.8ft)
- 1 x Power Adapter
- 1 x Screw Kit
- 1 x Drill Template
- 1 x Quick Start Guide
Warranty
1 Year Limited Warranty
